Details | |
---|---|
Standard | ISO 12098 |
Advantages: |
|
For cable exit with screw cap nut | |
---|---|
Article no. | |
785 320 500 | including pin contacts and seals |
For conduit exit | |
---|---|
Article no. | |
785 320 600 |
including pin contacts and seals, conduit exit axial NW13 |
785 320 700 | including pin contacts and seals, conduit exit 90° NW13 |
785 320 800 | including pin contacts and seals, conduit exit axial NW17 |
785 320 900 | including pin contacts and seals, conduit exit 90° NW17 |
Parking socket | |
---|---|
Article no. | |
785 220 300 | Parking socket 24 V |
Individual parts | |
---|---|
Article no. | |

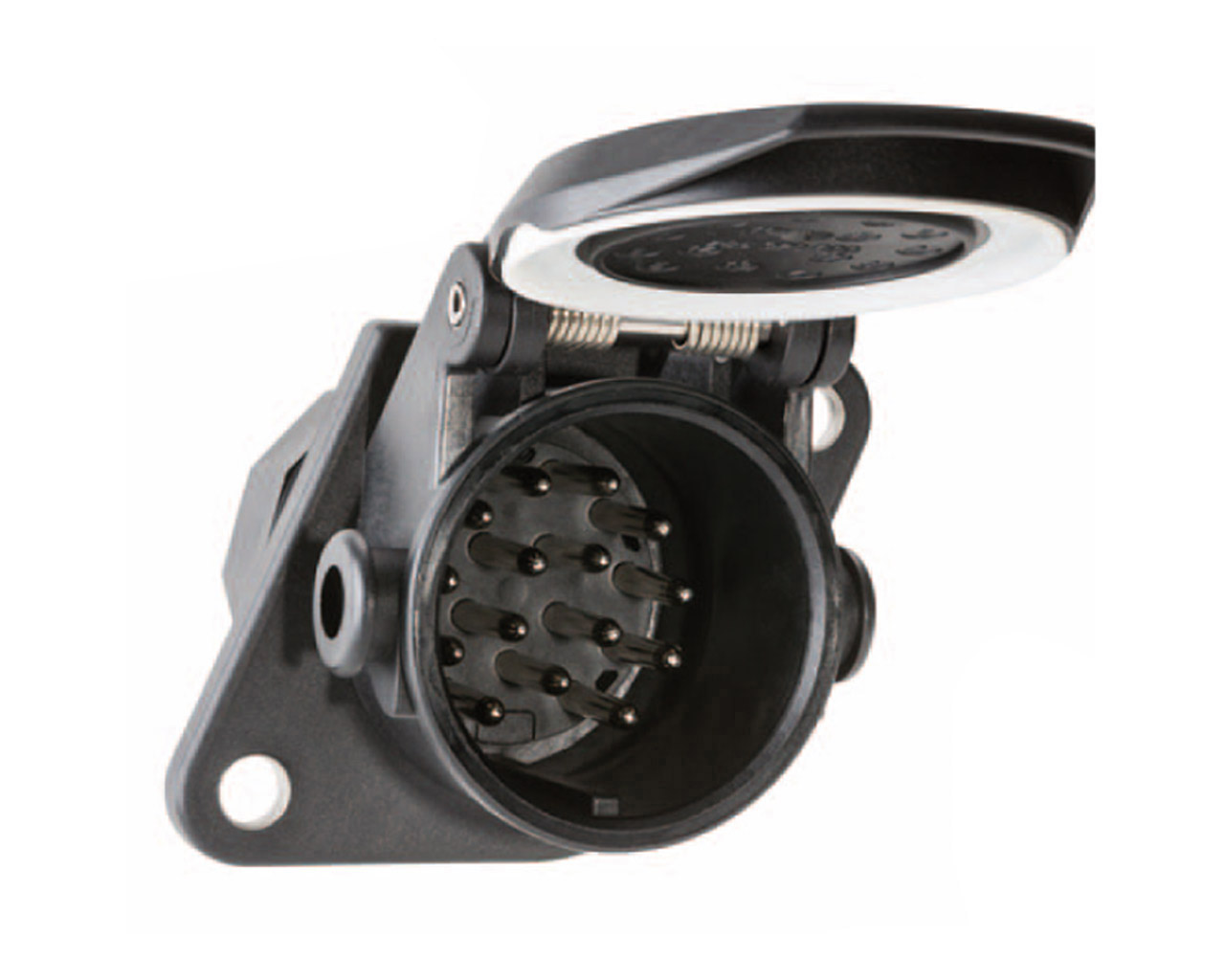

785 325 000 | Socket housing with cover |
785 320 080 | Contact holder 15-pin with seal |
785 120 050 | Bayonet ring |
785 120 030 | Corrugated tube NW13 |
785 120 040 | Corrugated tube 90 ° NW13 |
785 120 060 | Corrugated tube NW17 |
785 120 070 | Corrugated tube 90 ° NW17 |
Accessories | |
---|---|
Article no. | Massive pin contact for crimp connection 1 - 2,5mm² |
785 130 911 | Individual pin contact |
785 130 910 | Reel of 1.200 pcs |
785 110 940 | Single wire seal 1-2,5mm² (2.500 pcs) |
